Overview

The Reportgenerator feature uses Microsoft Office Templates to pull out data and showcase these. You can just work with Word documents, Excel files and Power Point presentations as you’re used to and consider some points in case of pulling data from .

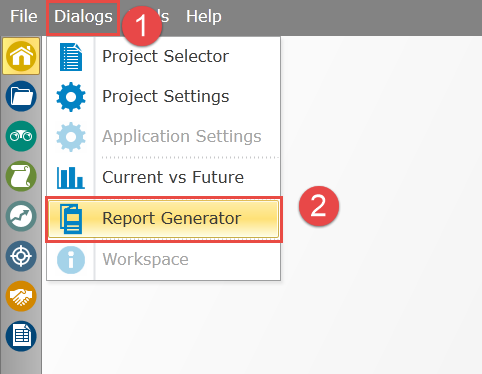

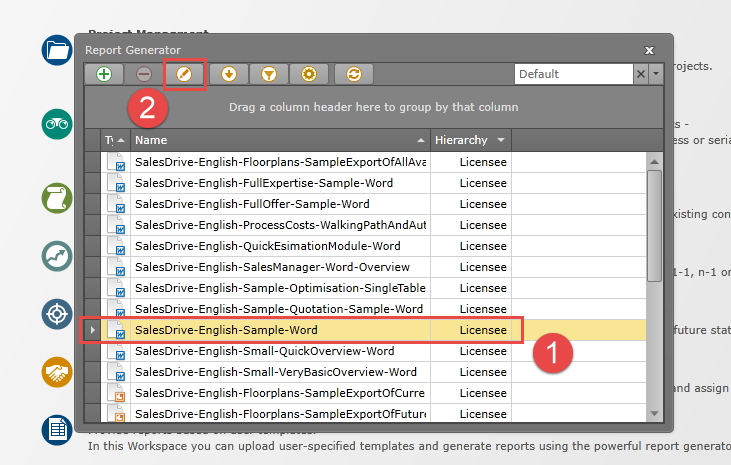

In order to get a first impression, you can download one of our default templates and peek into it.

Placeholders

To embed information in your Office documents you can use convenient placeholders. They can just be added in the office files instead of the data itself. There are 3 different types of placeholders: single placeholders, grouped table placeholders and ungrouped table placeholders.

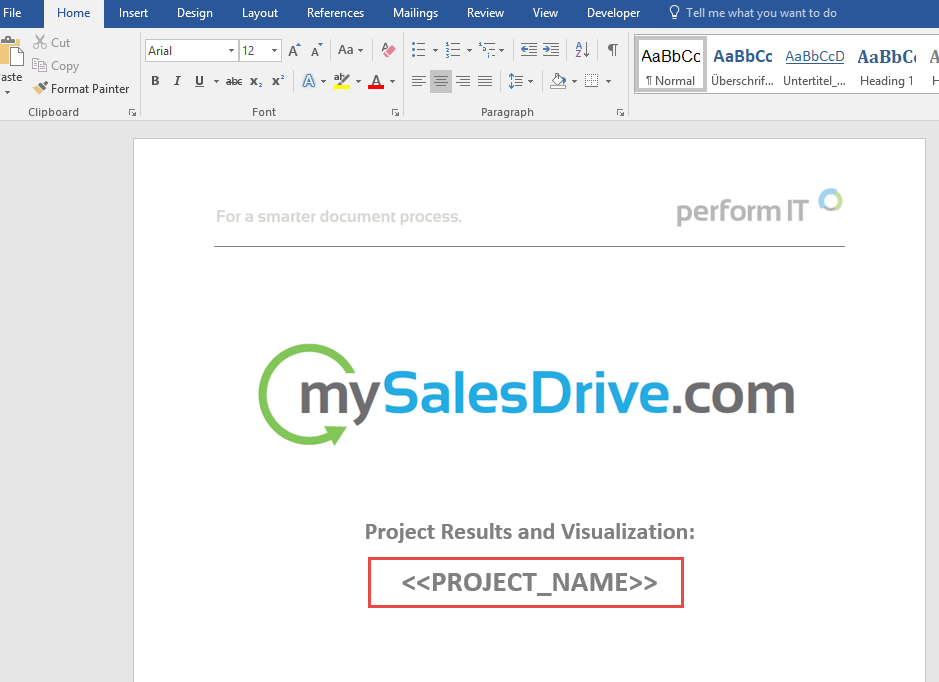

These look for example like...

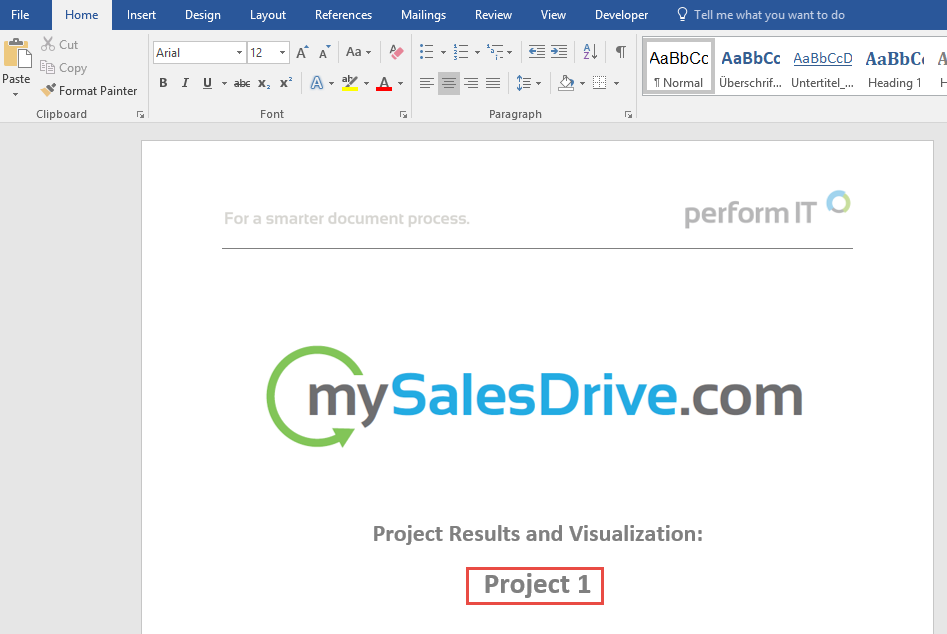

... and filled with data.

So what's the difference between single & table placeholders?

Single placeholders represent one set of data, e.g. customer name, contact person, TCO for one specific asset, etc.

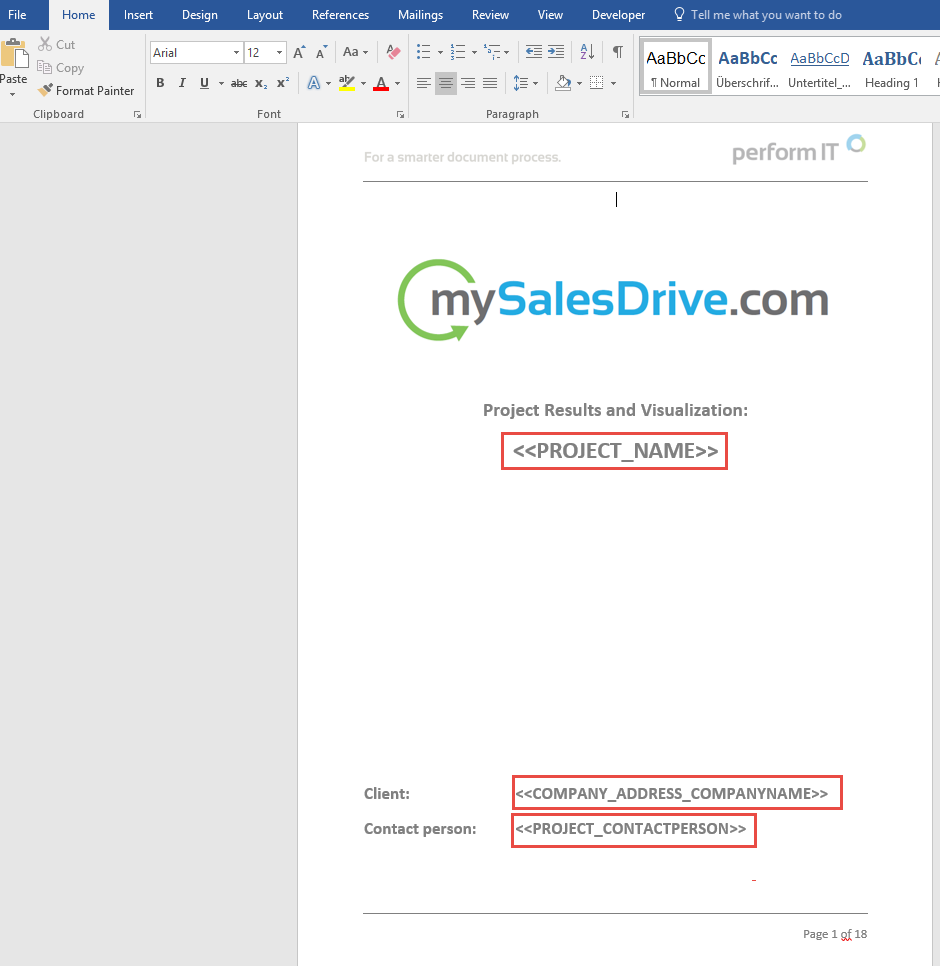

Single placeholders are always enclosed by << >> and can be placed anywhere in your document.

Grouped Table placeholders represent a set of sorted, summed data, eg. Total quantity of assets for each device type, provide an overview of total costs for each floor, etc.
Ungrouped Table placeholders represent a set of unsorted, unsummed data, e.g. list of all current devices, list of used print devices, etc.

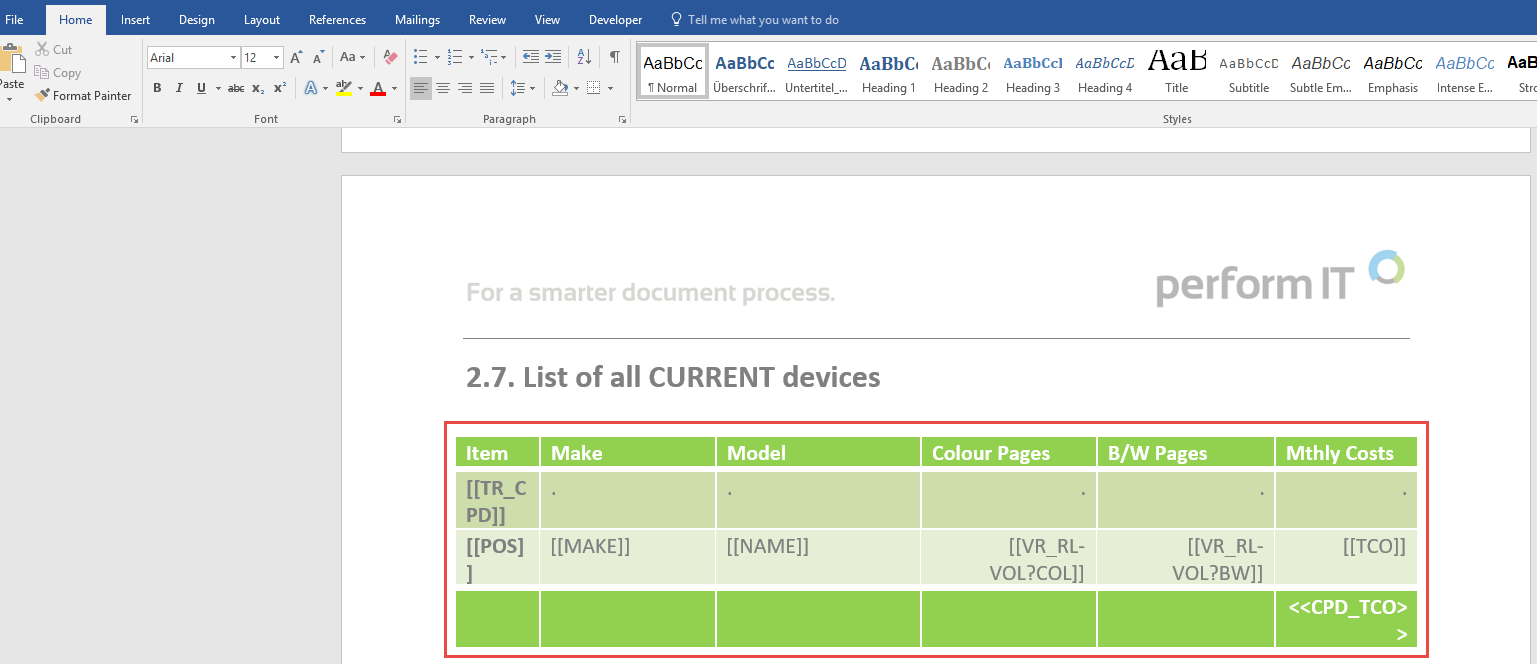

Table placeholders are always enclosed by [[ ]] and can only be placed in tables.

Features

Placeholders provide rich features to support different sorts of data operators (filter, calculate, format and percent indication).

Description	Operator	Example	Explanation
Filter	?	CPD?COL_TCO?BW	Many placeholders can be filtered. Rename it after a PART? and filter criteria. If there is a minus sign in front of the filter criteria then it’s being filtered exclusively (this is necessary if you need assets of the type “other” in your report).
Calculate	*	CPD_TCO*12	Every number can be multiplied with a fixed constant. No other calculation methods are supported. Also, you cannot multiply two placeholders.
Format	#(…)	CPD?MFD_TCO#(C4)	Some placeholders can be formatted and overwrite existing formats.
Percent	:PERCENT	CPD?MFD_TCO:PERCENT	Dynamic percent-indication only works for summary-objects (CPD & TPD).
		CPD?MFD_TCO?BW:PERCENT	Percent for TCO-Mono is based on current MFPs. If there is no value all placeholders will be ignored.
		CPD?MFD_TCO?BW:PERCENT(CPD_TCO?BW)	Shows the same result as above except of showing the complete amount (100%)
		CPD?MFD_TCO?BW:PERCENT(CPD_TCO)	Shows TCO-Mono percent of MFPs based on the complete current TCO-Sum (not only MFPs)
		CPD?MFD_TCO?BW:PERCENT(CPD?MFD_TCO)	Shows the percent TCO-Mono of MFPs based on the current TCO (Mono & Colour)

Categories

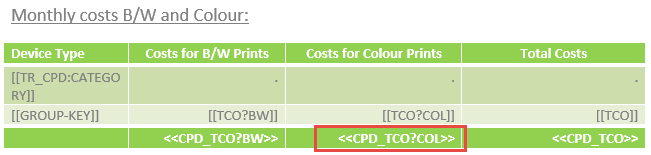

Categories are being used to logically build the placholders.

For example

The placeholder is being read from left to right while drilling into data.

CPD	_	TCO	?	COL
Current Paper Devices	Dividing different Categories	Total Costs of Ownership	Filter operator	Colour

So we look for a value of current paper devices that is the TCO of the colour portion.

List of Categories

Categorie	Filters	Explanation	Single	Table
PROJECT		Access to Project details, Green IT and others	X
COMPANY		Company details which the project is linked to	X
USER		Report generating user	X
GROUP		User group of “user”	X
DEALER		Linked dealer of “user”	X
LICENSEE		Licensee of “user”	X
CAS / TAS		All assets of the project		X
CAD / TAS	PD; COM; SVC; SW; EQU; CON	All assets of the project with details (equipment and consumables information follows their linked paper device).		X
CPD	COL; BW; LASER; LED; INK; THERMAL; ANALOG; SMALL; STD; LARGE PRN; COP; FAX; SCAN; MFD; AIO; HIGHVOL; PLOTTER; LABLE-PRN; PORTABLE-PRN; OTHER CONTRACTED; NON CONTRACTED; CAN-DUPLEX CANNOT-DUPLEX CAN-NETWORK; CANNOT-NETWORK	Current Paper Devices	X	X
TPD	(Same as CPD)	Target Paper Devices	X	X
TC		Target Contract (only the first contract of future assets)	X
CTPD		Comparison of current and target. Every placeholder of CPD & TPD is available, start these with C_ or T_ On top, you can use TRANSFER to display the takeover type.		X
CCON,TCON		Current / Target Supplies. Every model-related Consumable		X
CON-LINK, TCON-LINK		Current / Target Supplies-Links. Every asset-related Consumable. It’s possible to access the linked asset.		X
CEQU, TEQU		Current / Future Equipment		X
CC		Current contract list		X
TC		Target contract list		X
COSTCENTRE		Cost-Centre		X
DEPARTMENT		Department		X
FLOOR	HasFloorplan	Floors Floorplans are only available here.		X

Format

Placeholders can provide formatted output. That can be achieved by placing “#()” at the end.
e.g. CPD_TCO#(0.000) or CPD?BW_TCO:PERCENT(CPD_TCO)#(000.000 ‘%’)

Important: The format-specification must always be at the end of the placeholders!

Formatting examples

If you’d like to output text it must be enclosed by apostrophes ' '
Hint: By default office doesn’t use proper apostrophes! Easiest way to get them is copying them from notepad.

Filetype	Format	Result
Number (12,34)	#(0)	12
	#(0)	12
	#(0.0)	12,3
	#(0.0000)	12,3400
	#(0000.0000)	0012,3400

	#(#)	12
	#(#.#)	12,3
	#(#.####)	12,34
	#(####.####)	12,34

	#(C3)	12,340€

Clear Text	#(0.0000 'EuRo')	12,40 EuRo
Date (23.03.1988)
	#(yyyy)	1988
	#(yyyy-MM-dd)	1988-03-23
	#(MMMM yy)	March 88

	#(ddd.)	WED.
	#(dddd	Wednesday
	#(MMM.)	Mar.
	#(MMMM)	March
	#(yy)	88

Examples

Assets grouped by floor

Location	Building	Floor	Number of assets	Costs	Remarks about the Floor
[[TR_CPD:FLOOR-OBJECT]]	.	.	.	.	.
[[GROUP-KEY_BUILDING_LOCATION_NAME]]	[[GROUP-KEY_BUILDING_NAME]]	[[GROUP-KEY_NAME]]	[[N]]	[[TCO]]	[[GROUP-KEY_REMARKS]]

The Dots in first line are important!

Multi-Value-Cells

The placeholder-definition has to be mirrored in the table row for a mulitcell. The first column can’t have multiple values. A multicell can be formatted variable (max. 10 possible placeholders).

Pos.	Make / Model	Type	Vol. BW / Colour	Costs
[[TR_CPD]]	[[MAKE]] / [[NAME]]	.	[[VR_RL-VOL?BW]] (SW) + [[VR_RL-VOL?COL]] (COL) =[[VR_RL-VOL]]	.
[[POS]]	[[MAKE]] / [[NAME]]	[[CATEGORY]]	[[VR_RL-VOL?BW]] (SW) + [[VR_RL-VOL?COL]] (COL) =[[VR_RL-VOL]]	[[TCO]]

Floor plan export

Floors can be exported in two ways, either the floor-table or assets grouped by floors.

Floor-Table

Best solution to display current-/ future state in a table. You can access the summary-objects, which are linked to the floor, with the CPD and TPD placeholders.

Pos	Floor	Legend	Plan
[[TR_FLOOR?HAS-FLOORPLAN]]	[[BUILDING_LOCATION_NAME]] [[BUILDING_NAME]] [[NAME]]	[[CPD?PRN_N]] / [[TPD?PRN_N]] [[CPD?MFD_N]] / [[TPD?MFD_N]] [[CPD?SCAN_N]] / [[TPD?SCAN_N]] [[CPD?FAX_N]] / [[TPD?FAX_N]] ? = [[CPD?-PRN?-MFD?-SCAN?-FAX_N]] / [[TPD?-PRN?-MFD?-SCAN?-FAX_N]] Total: [[CPD_N]] / [[TPD_N]]	.
[[POS]]	[[BUILDING_LOCATION_NAME]] [[BUILDING_NAME]] [[NAME]]	[[CPD?PRN_N]] / [[TPD?PRN_N]] [[CPD?MFD_N]] / [[TPD?MFD_N]] [[CPD?SCAN_N]] / [[TPD?SCAN_N]] [[CPD?FAX_N]] / [[TPD?FAX_N]] ? = [[CPD?-PRN?-MFD?-SCAN?-FAX_N]] / [[TPD?-PRN?-MFD?-SCAN?-FAX_N]] Total: [[CPD_N]] / [[TPD_N]]	[[FLOORPLAN-OPT]]

Print Devices by Floor-Object

Assets are grouped according to floors. This list will not show any floors which don’t have any assets linked to them. You can easily use the “plotted”-filter here.

Pos	Floor	Legend	Plan
[[TR_CPD:FLOOR-OBJECT]]	[[GROUP-KEY_BUILDING_LOCATION_NAME]] [[GROUP-KEY_BUILDING_NAME]] [[GROUP-KEY_NAME]]	[[ITEMS?PRN_N]] [[ITEMS?MFD_N]] [[ITEMS?SCAN_N]] [[ITEMS?FAX_N]] ? = [[ITEMS?-PRN?-MFD?-SCAN?-FAX_N]] Total: [[ITEMS_N]]	.
[[POS]]	[[GROUP-KEY_BUILDING_LOCATION_NAME]] [[GROUP-KEY_BUILDING_NAME]] [[GROUP-KEY_NAME]]	[[ITEMS?PRN_N]] [[ITEMS?MFD_N]] [[ITEMS?SCAN_N]] [[ITEMS?FAX_N]] ? = [[ITEMS?-PRN?-MFD?-SCAN?-FAX_N]] Total: [[ITEMS_N]]	[[GROUP-KEY_FLOORPLAN-CUR]]
